Rota-Tray Wave & Whirlpool Filters

Create flowing optical distortion in-camera. Wave uses solid wavy glass for distortion across the frame. Whirlpool adds a 49mm center hole for an unobstructed central view surrounded by wavy distortion. Rotate either filter to change the direction of the effect.

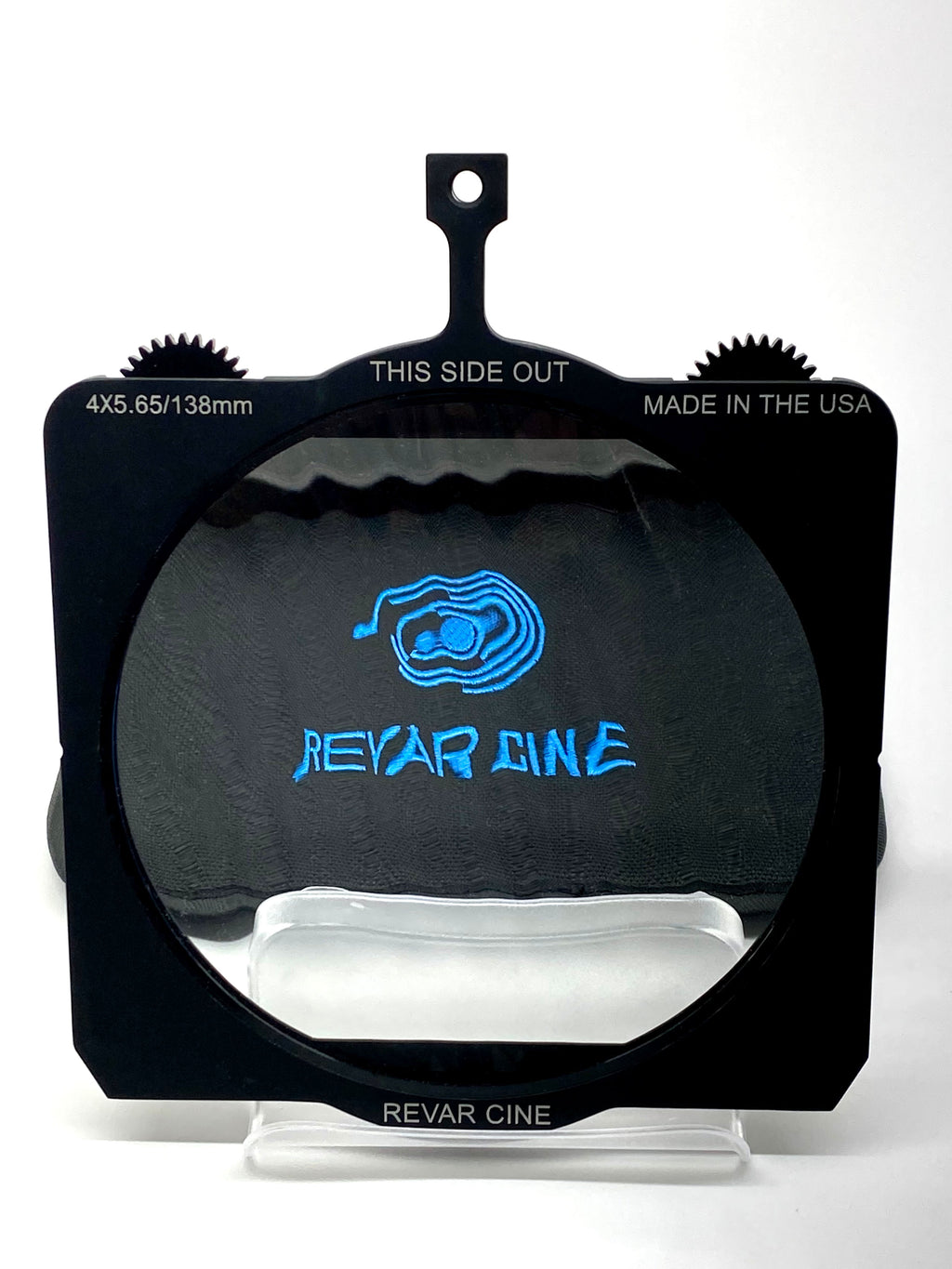

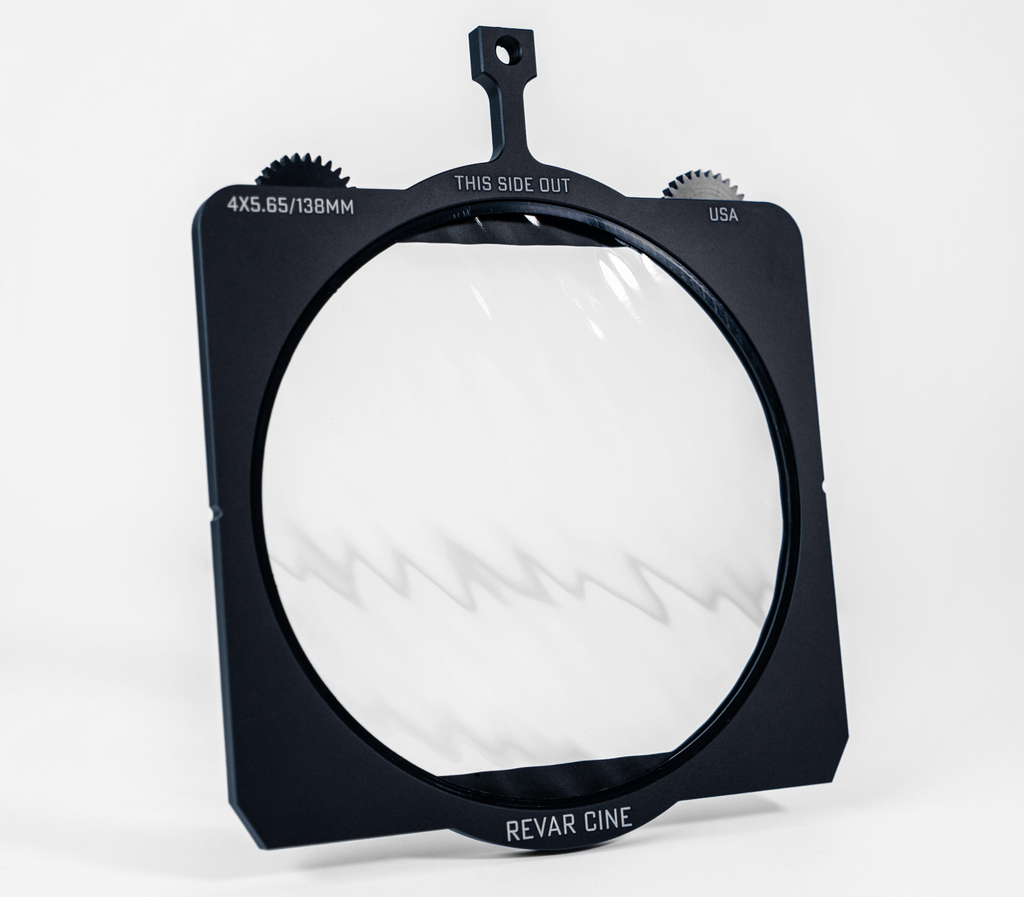

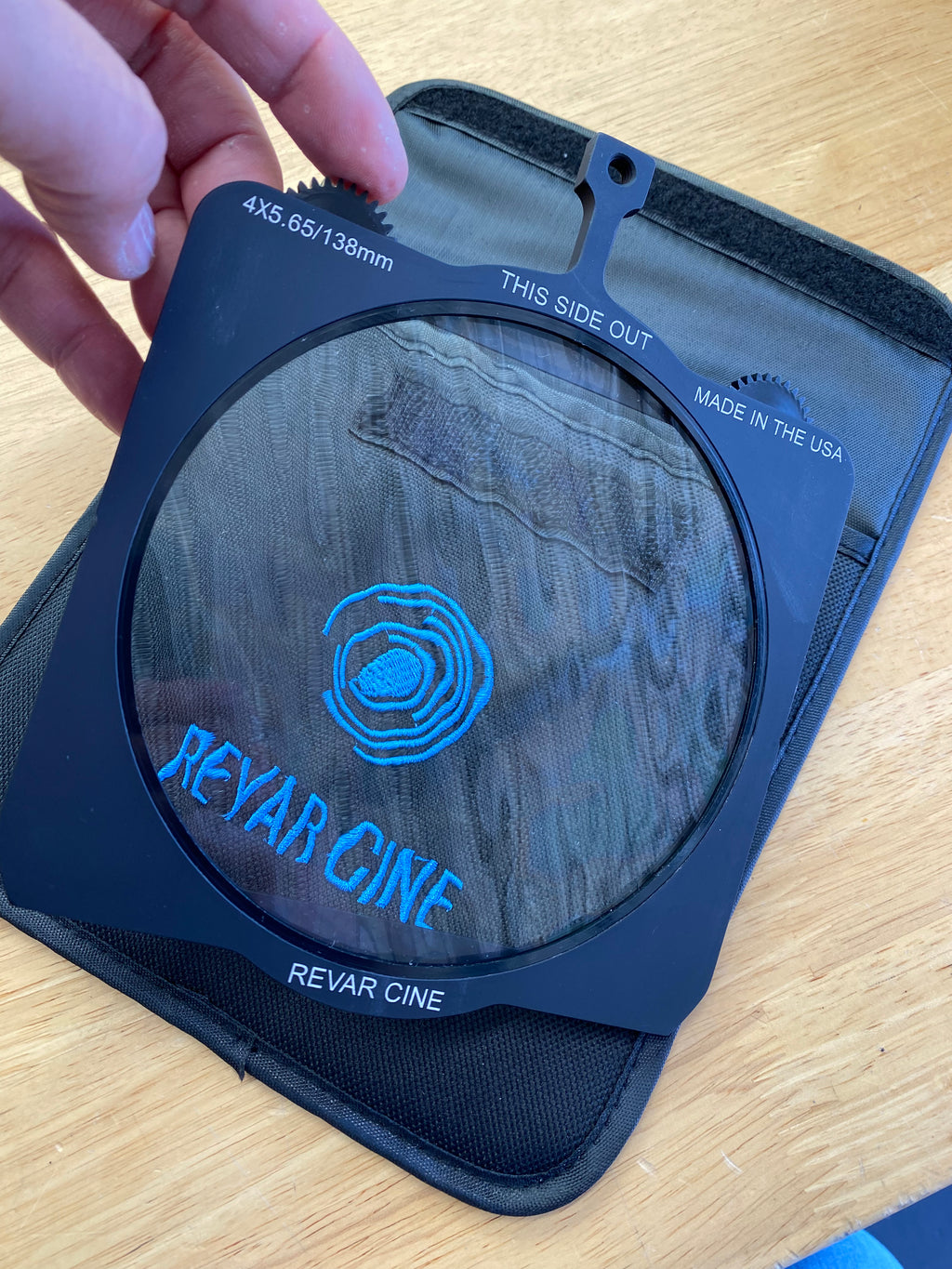

Revar Cine Wave filter with solid wavy glass mounted in a Rota-Tray

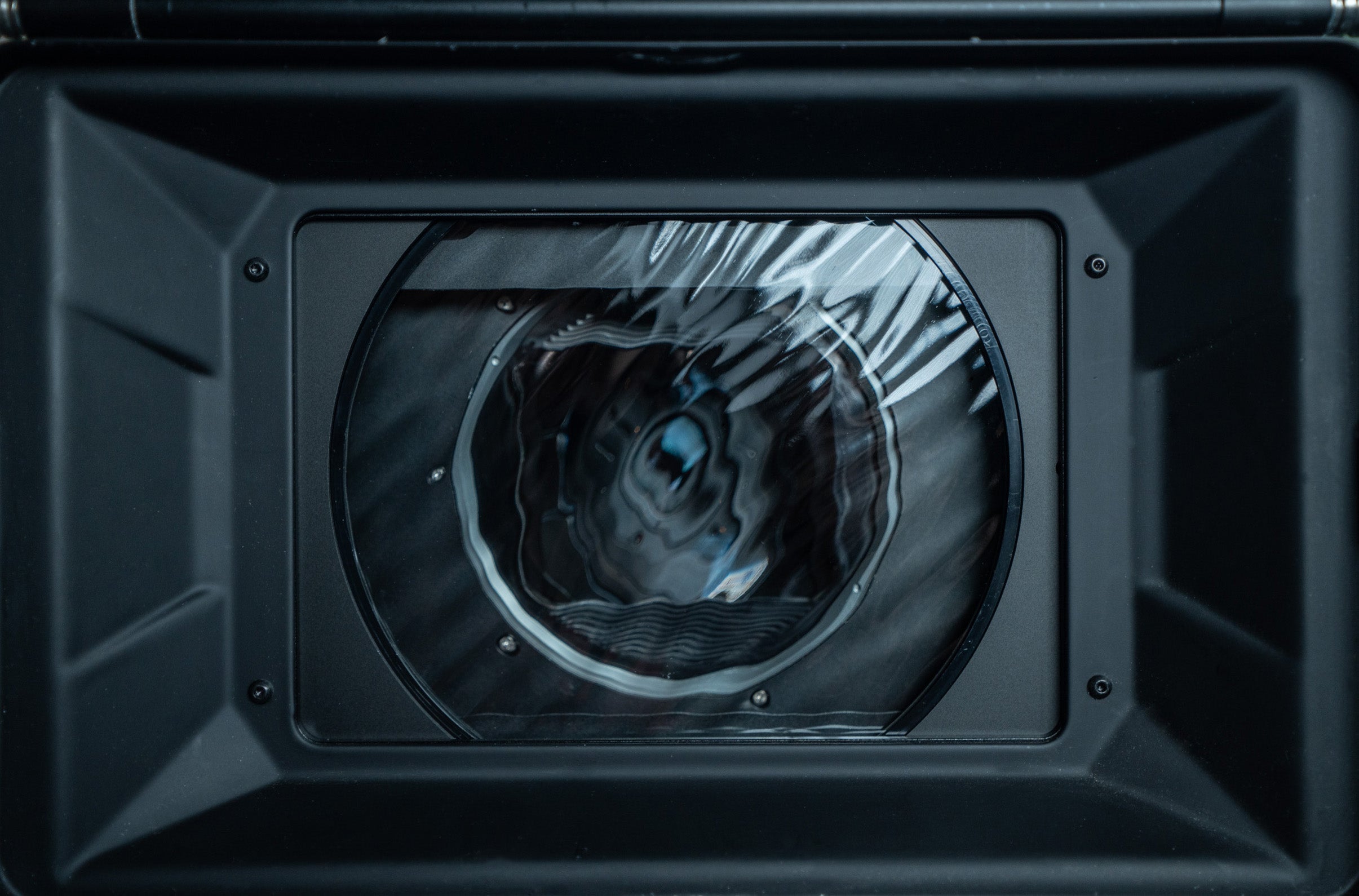

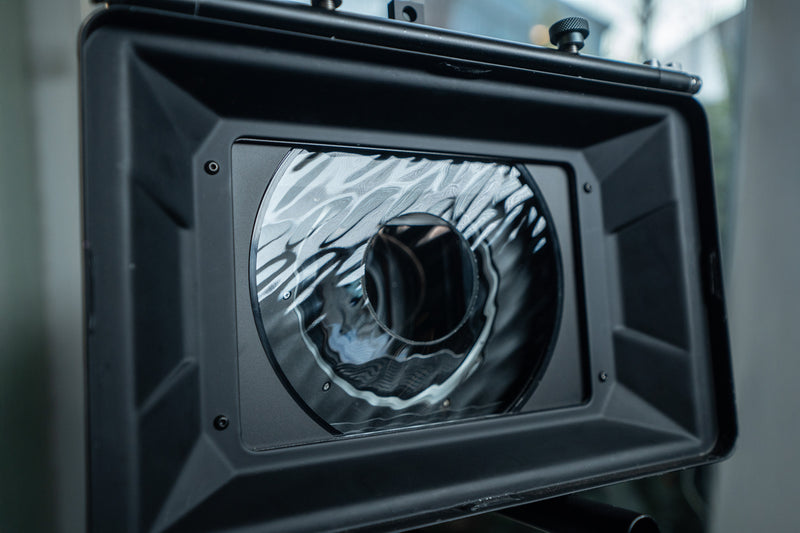

Revar Cine Wave filter installed in a cinema matte box
Wave filter effect creating flowing distortion across a portrait

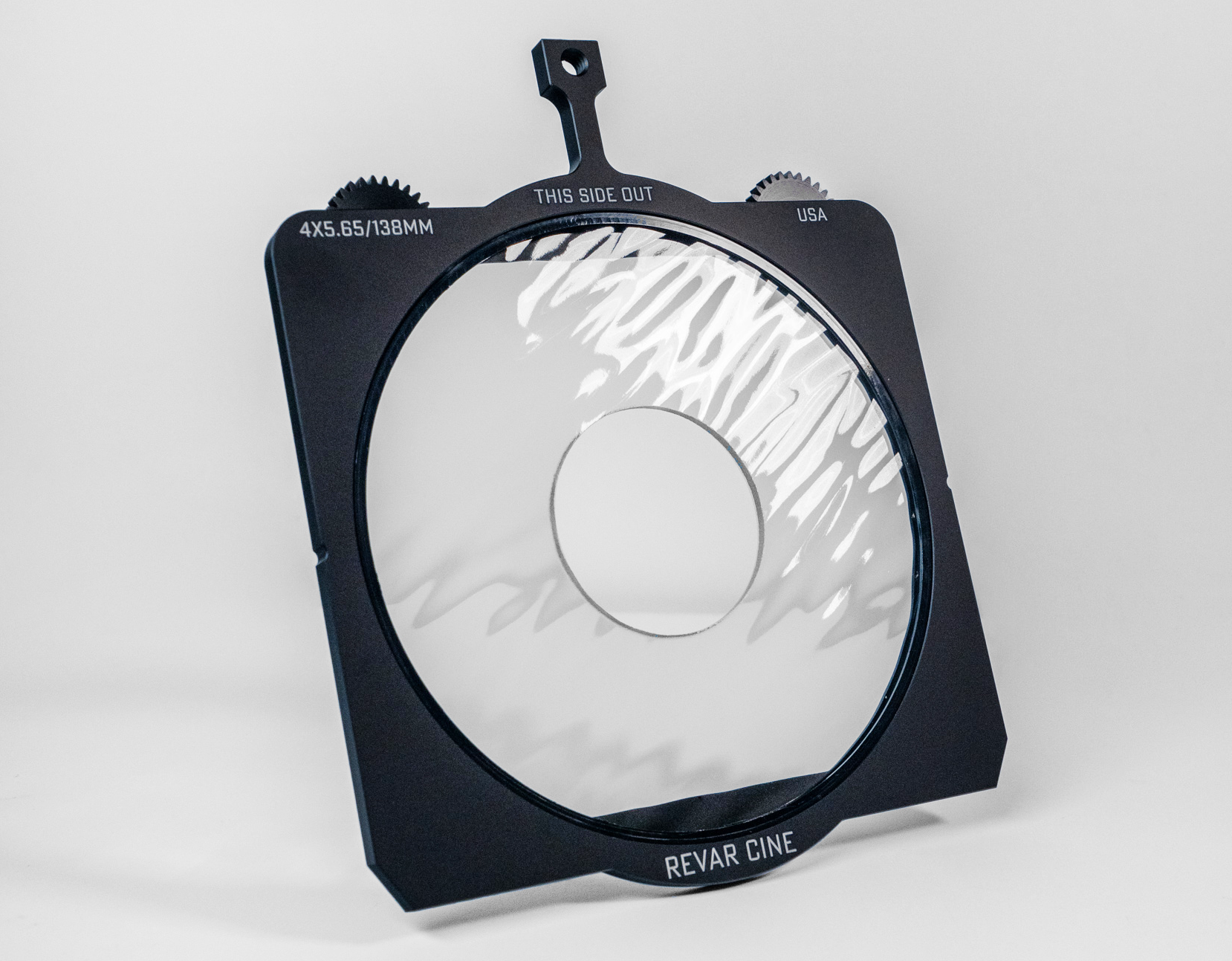

Revar Cine Whirlpool filter with a 49mm center hole mounted in a Rota-Tray
Outdoor portrait demonstrating the Revar Cine optical distortion effect
Alternate outdoor portrait demonstrating the Revar Cine anamorphic optical distortion effect

Revar Cine

Rota-Tray Wave & Whirlpool Filters

Sale price$349.00
SKU: RC-RT4565138WAVE

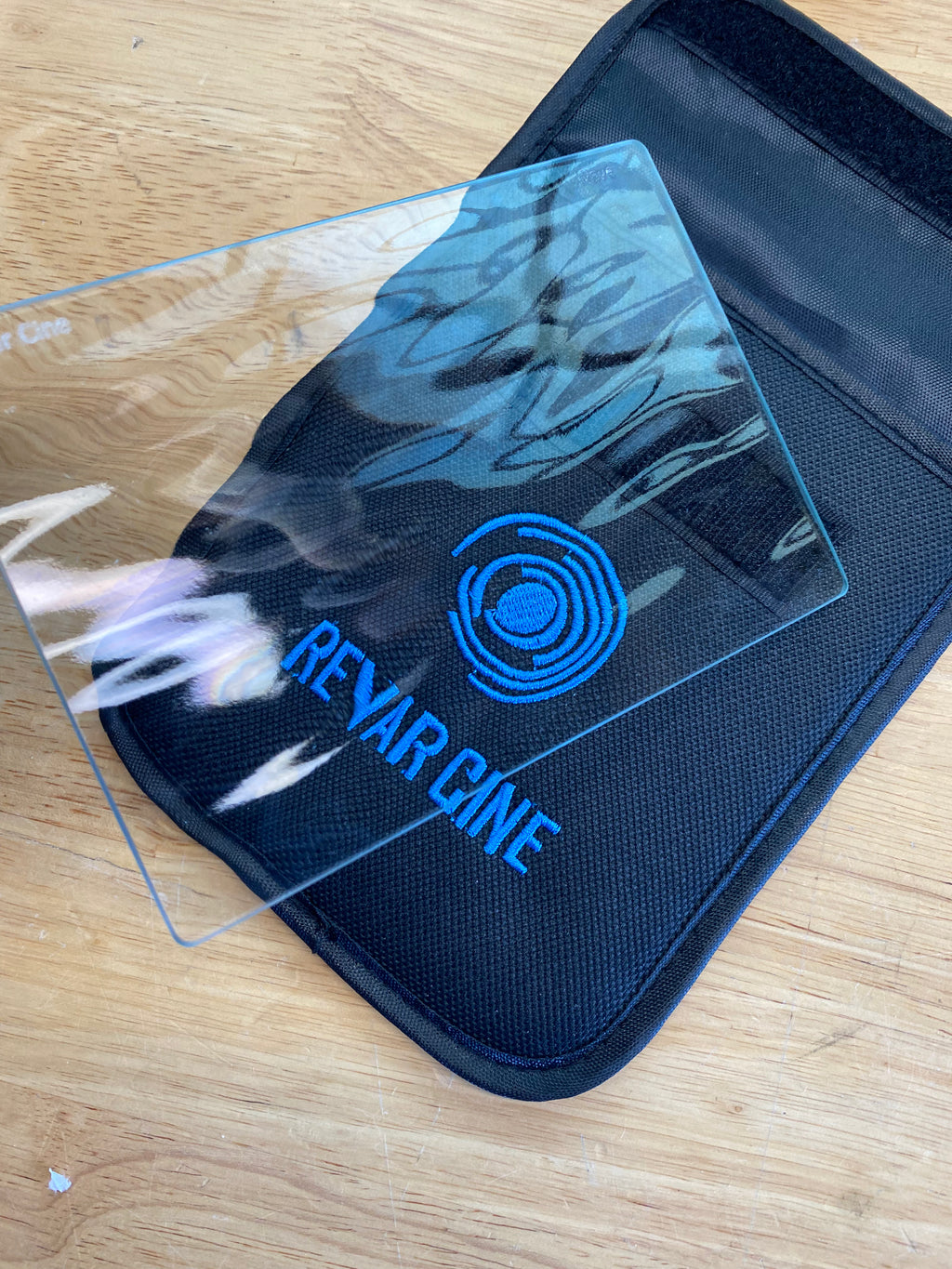

Need replacement glass? Shop Wave glass or Whirlpool glass.

Size:4x5.65/138mm Rota Tray Wave
Quantity:
Easy Return Shipping
Free First Exchange
60 Day Return Window
Description +

The Revar Cine Rota-Tray Wave and Whirlpool filters create optical distortion in-camera, with geared rotation that lets you change the direction of the effect or introduce movement during a shot.

Choose your effect
  • Wave: Solid wavy glass bends and distorts the image across the entire frame.
  • Whirlpool: Wavy glass surrounds a 49mm center hole, leaving the central view unobstructed while introducing distortion around it.

Both versions mount in the Rota-Tray system for use with compatible ARRI-standard 4x5.65 matte boxes. Rotate the filter to find the orientation that suits your composition, or turn it during filming for a shifting distortion effect.

The appearance varies with your lens, focal length, aperture, and subject distance. Test the filter with your camera setup to explore how it transforms faces, backgrounds, and practical light sources.

Specs +
4x5.65/138mm Rota Tray:

Height (post to bottom): 7.2" (182.88mm)

Height (filter frame only): 5.413" (137.49mm)

Width: 5.895" (149.73mm)

Depth: 0.236" (6mm)

Key Features +
  • Two distinct effects: full-frame Wave distortion or Whirlpool with a 49mm center hole.
  • Geared rotation for adjusting the effect’s orientation and creating movement.
  • Optical glass produces the effect during capture.
  • Integrates into compatible 4x5.65 matte-box workflows.

Get the highlights

Loading video...

Altered Reality

Create images that heavily alter reality

Whirlpool

Add wavy magic to the edges of frame while keeping your subject sharp.

Choose Wave for distortion across the entire frame, or Whirlpool for wavy distortion around a 49mm center hole. Both versions rotate in the Rota-Tray, letting you change the direction of the effect. The appearance varies with focal length, focus, and aperture.

Wave pattern glass provides a strong alteration of reality.

Rotate to create dynamic motion to enhance the effect or find the sweet spot.

Focal length dependent look with wide angle lenses showing a broad pattern and a telephoto focal length decreasing the effect for more image definition.

Forget about post with dynamic light refractions that can’t be easily duplicated in post.

Optical glass free of defects and while leaving distortion in all the right places.

Compatible with most 4x5.65 matte boxes from Arri, Bright Tangerine, Wooden Camera and others.

Frequently Asked Questions

Wave uses solid wavy glass to distort the entire frame. Whirlpool has a 49mm center hole that leaves the central view unobstructed, with wavy distortion around it. Both rotate in the Rota-Tray to change the direction of the effect.

Ultra wide angle or telephoto produce the most popular effects. Wide angle lessens the wave effect and telephoto will create heavier distortion.

The Rota Tray Whirlpool adds a 49mm center hole for a clear subject in the center and swirl wave effect when rotated.
