Revar Cine
138mm Compression Close-Up Diopter
Description +

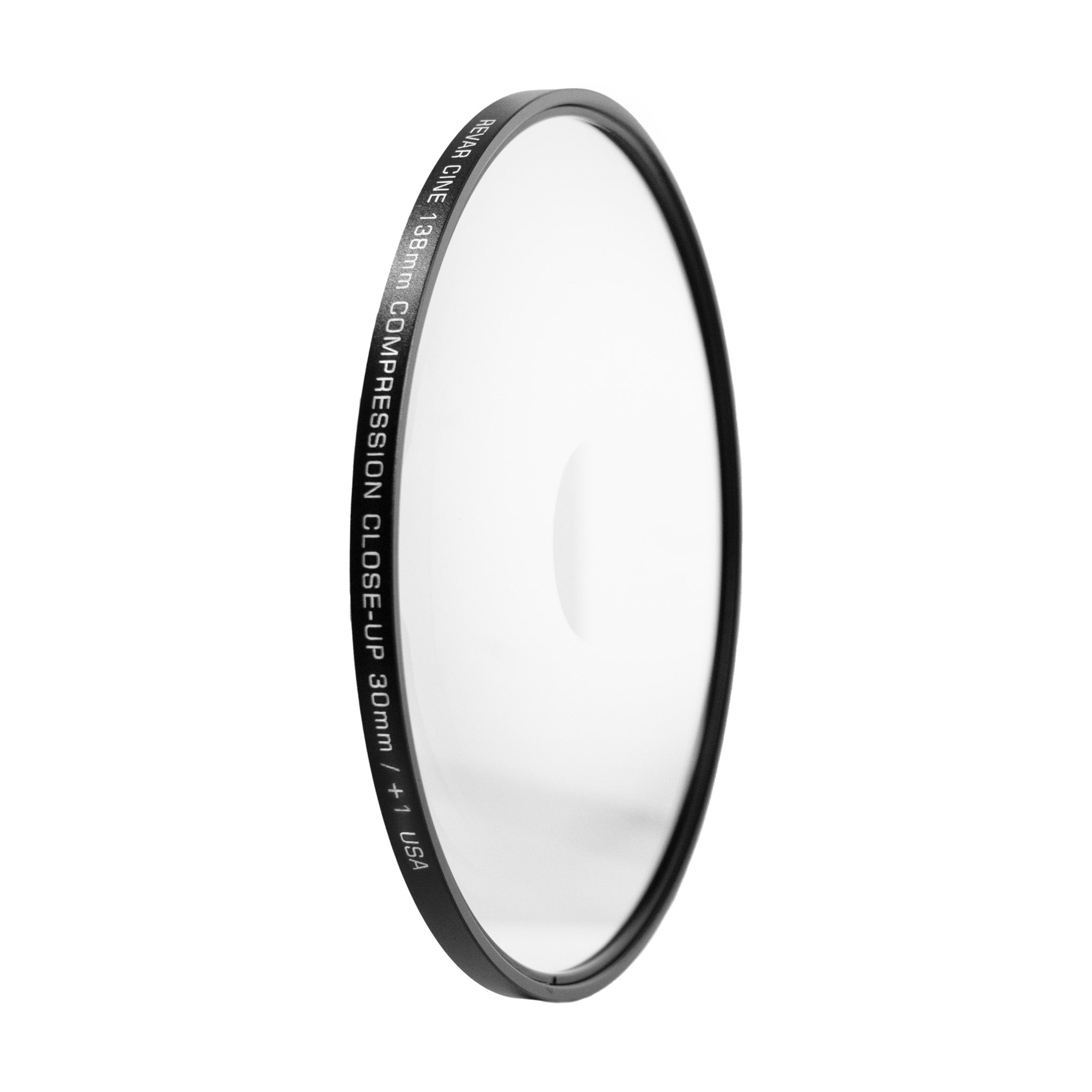

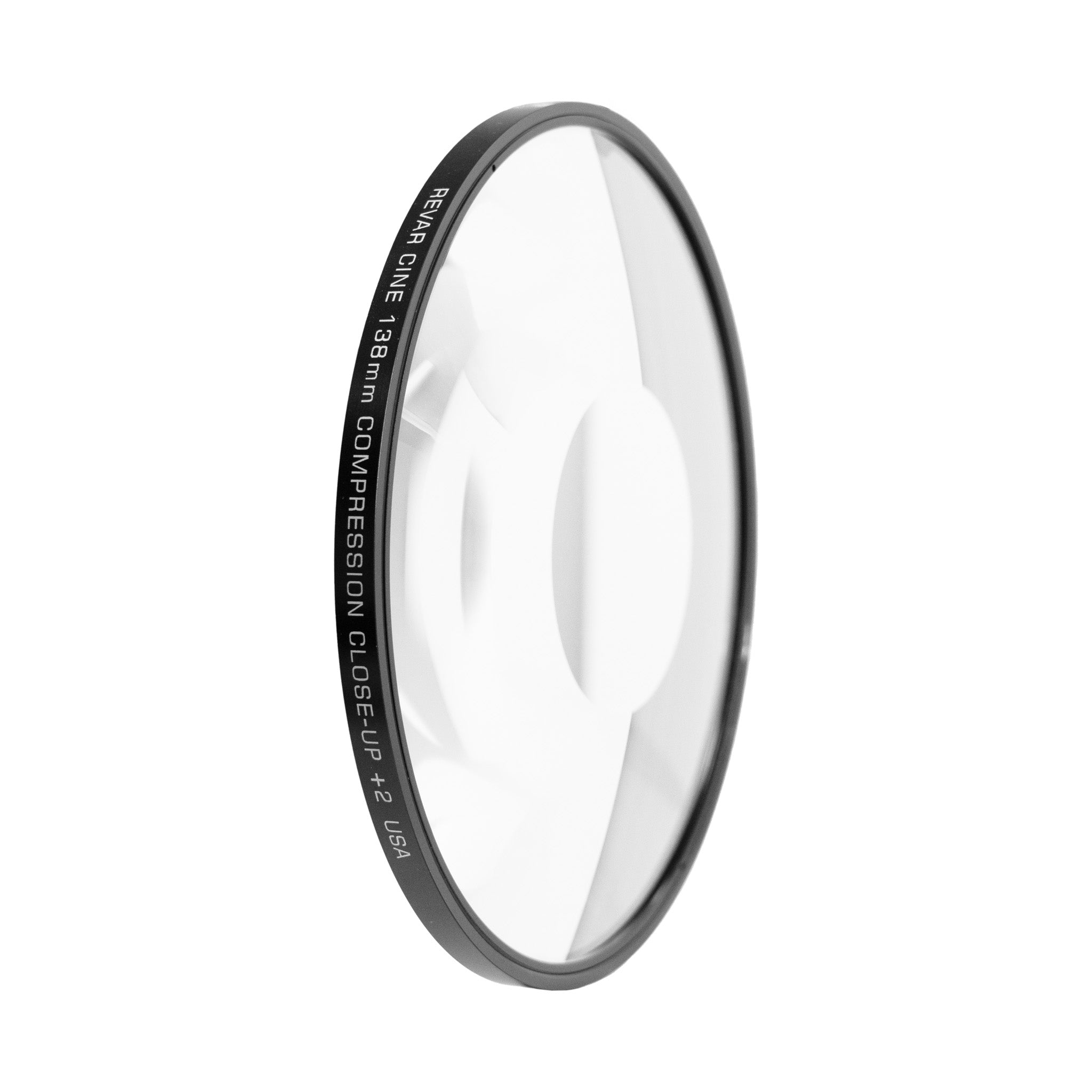

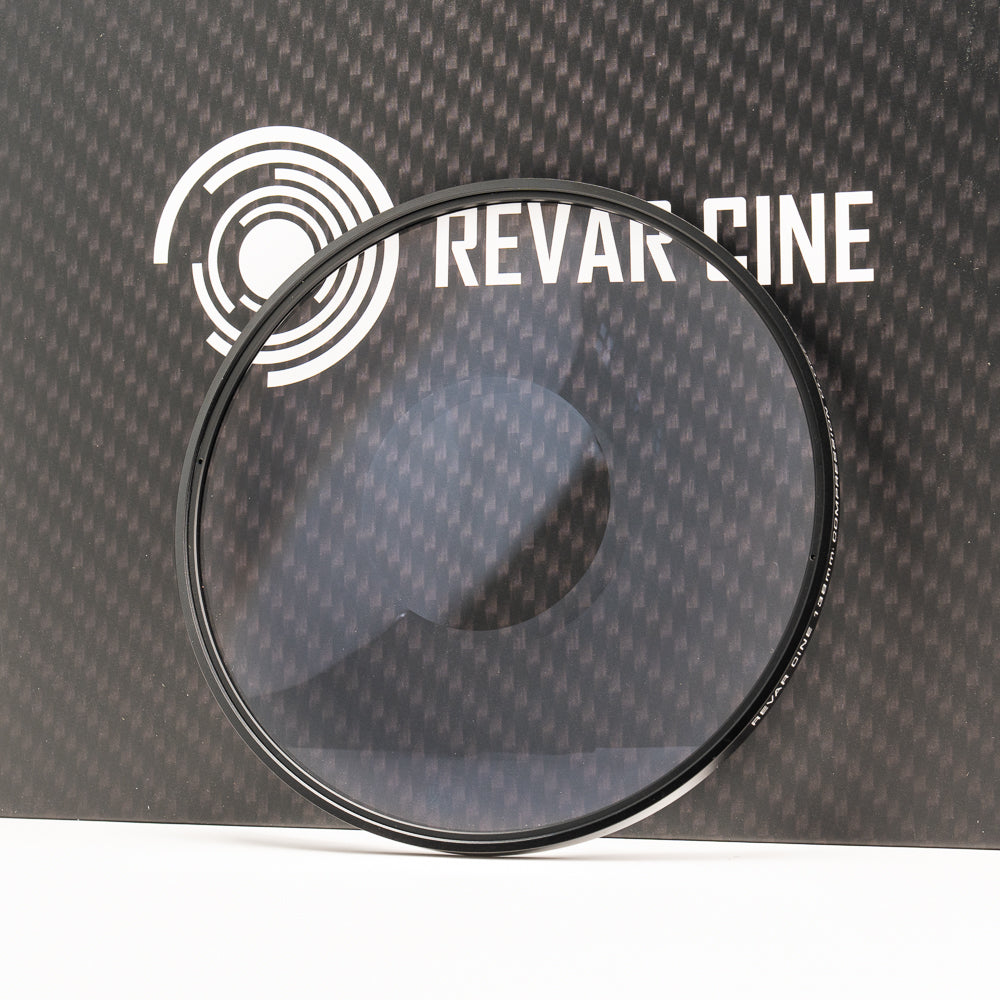

Revar Cine 138mm Compression Close-Up Diopter Filter
Combine close-focus macro capability with striking visual effects. The Revar Cine 138mm Compression Close-Up Diopter Filter features a precision-polished flat center window that keeps your subject tack-sharp while creating organic spherical distortion, blurring, and a zoom-rack effect across the edges of your frame.
Crafted from high-index Schott BK7 optical glass and coated with a broadband anti-reflective finish, this specialty filter reduces minimum focus distances on large cinema lenses—making it an essential tool for anamorphic setups and creative narrative shots.
Specs +
- Filter Size: Industry-standard 138mm round
- Glass Type: Schott BK7 optical glass with broadband anti-reflective coating

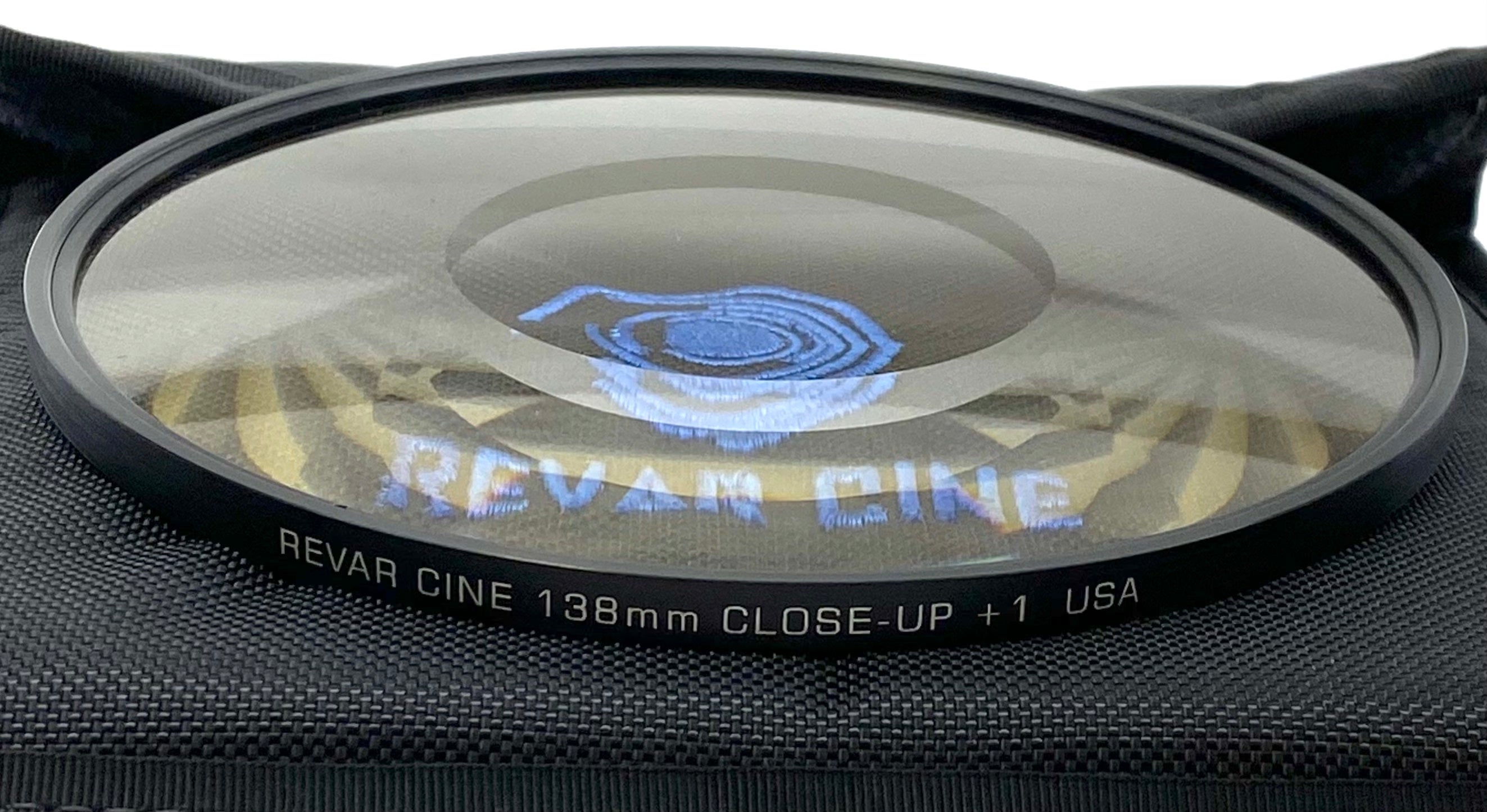

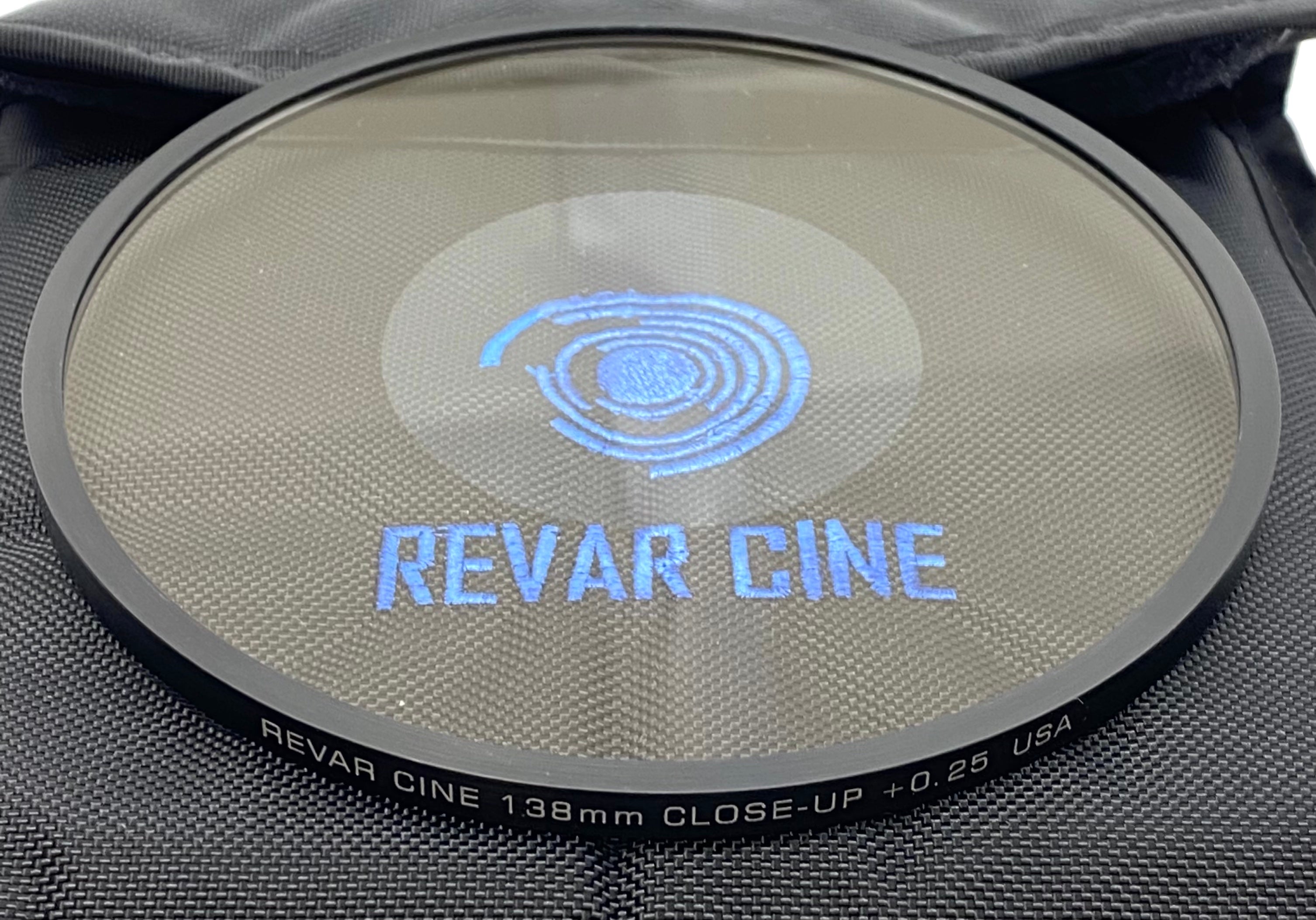

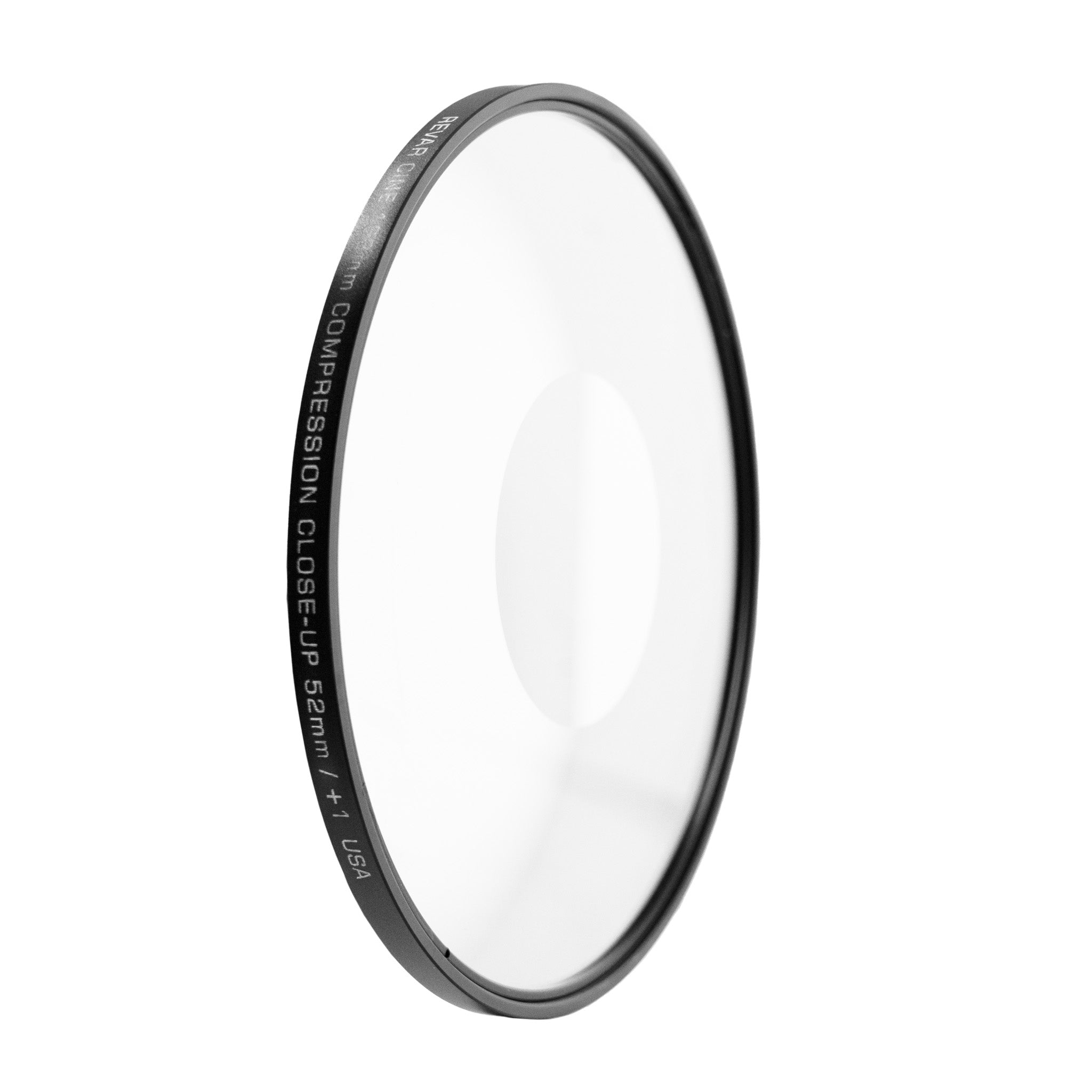

- Center Window Options: 30mm or 52mm clear center aperture

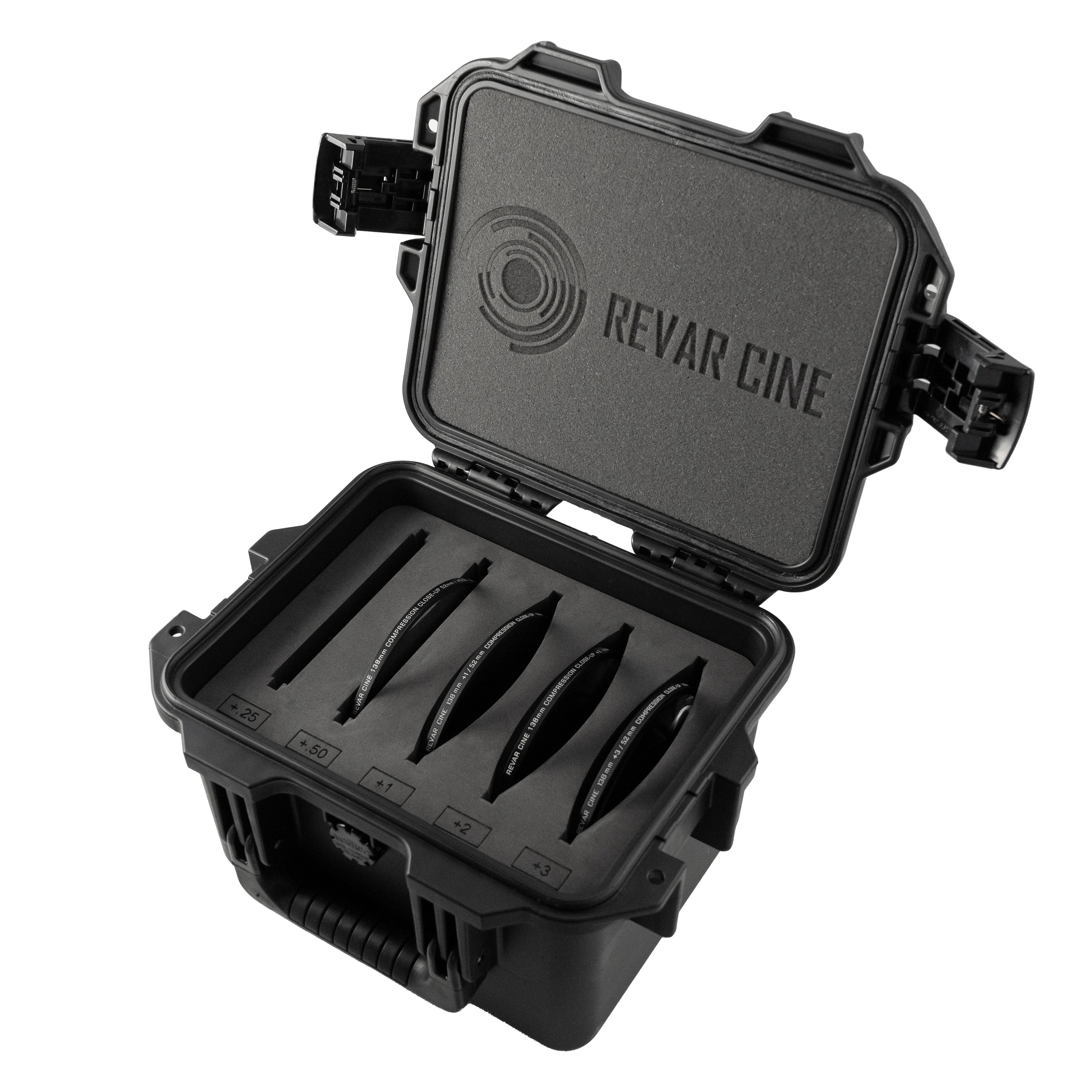

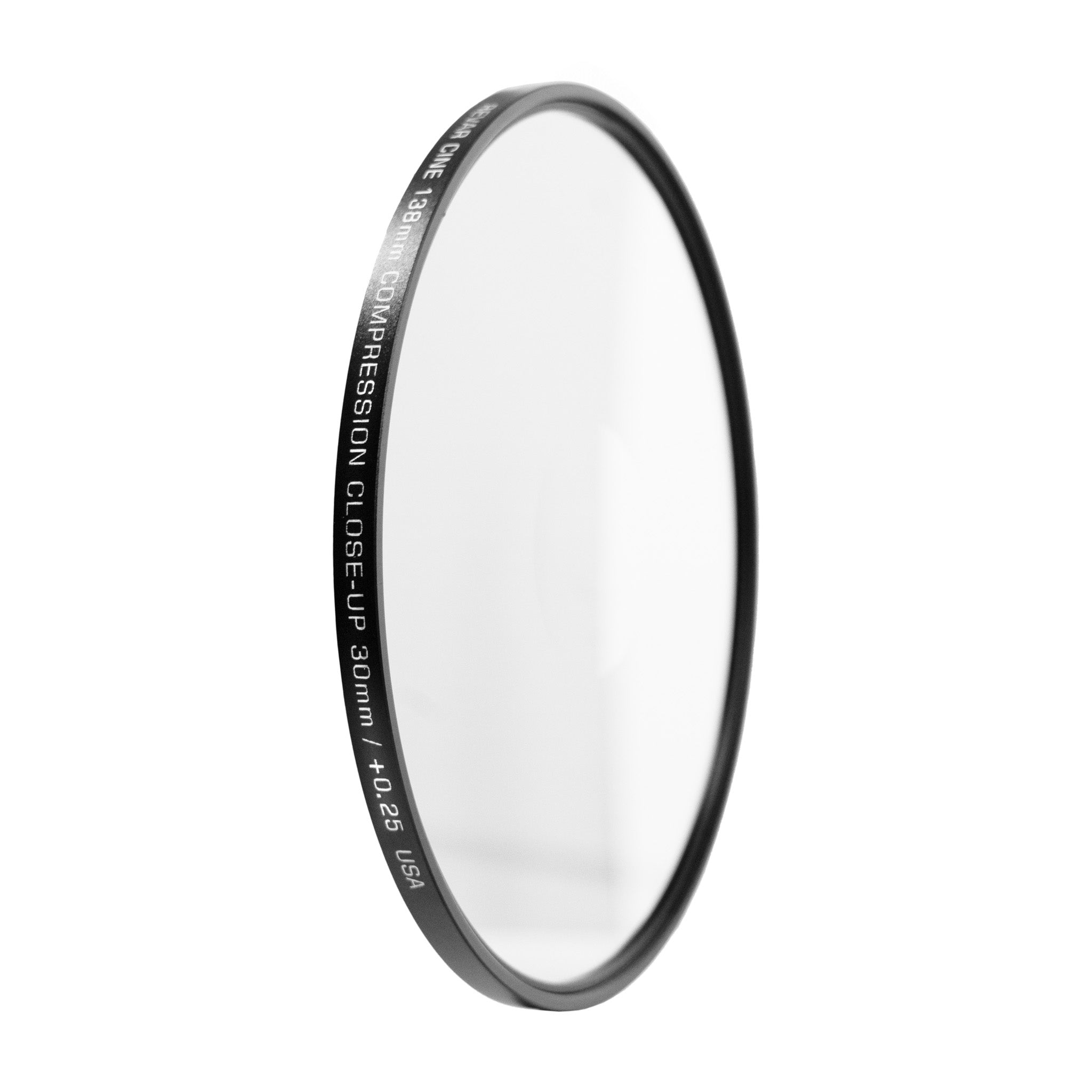

- Available Strengths: +0.25, +0.50, +1, +2, +3

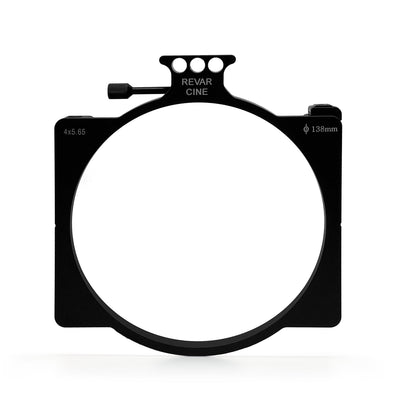

- Matte Box Compatibility: Revar Cine Double Tray, Arri LMB 138mm, Bright Tangerine ONE Tray, Cine Mechanics, and standard 138mm filter holders
Key Features +
- Precision Flat Center Window: Available in 30mm and 52mm clear center windows to draw selective focus to your subject while letting the surrounding glass create continuous, dynamic edge compression.

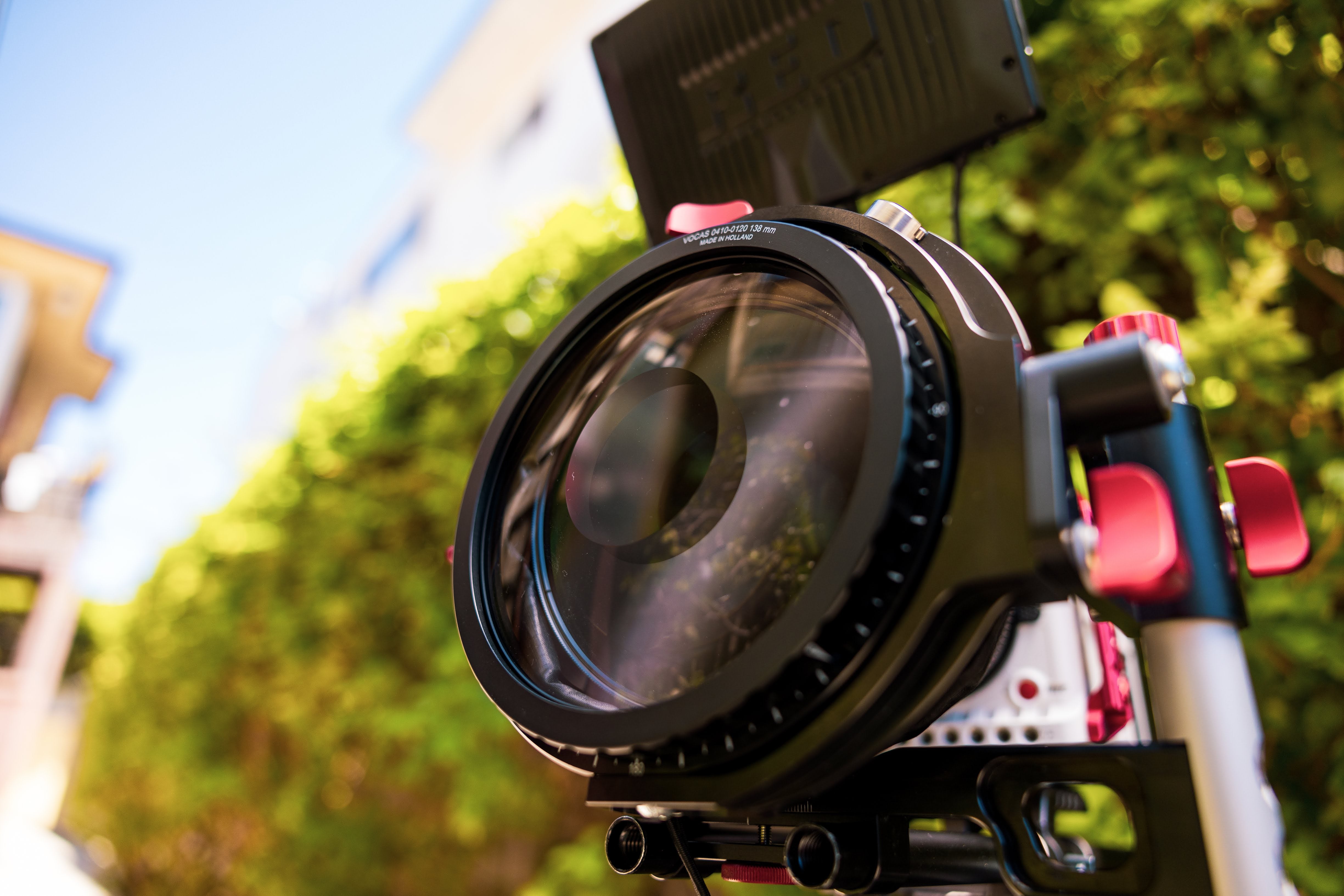

- Close-Focus Performance: Cuts minimum focus distance significantly, allowing close-up macro shots on large cine and anamorphic lenses without sacrificing optical clarity.
Premium Optical Glass: Built using high-quality Schott BK7 glass with anti-reflective coatings to maintain your lens's original flare character, color reproduction, and contrast.- Standard 138mm Form Factor: Fits directly into 138mm-compatible matte boxes, tray stages, and specialized filter holders (such as Arri LMB 138mm, Bright Tangerine ONE Tray, and Revar Cine tray systems).
- Durable Anodized Ring: Mounted in a scratch-resistant anodized aluminum ring designed for demanding film set environments.
Choose options
Get the highlights
Choose your diopter strength and center-window size to suit your lens and composition. Watch the examples above to compare the effect, then explore the FAQs below for guidance on selection.
Selective focus with a sharp center and gentle roll off on the edges.
Gentle transition from sharp center to blurred edge with no drop in contrast or other artifacts available in our Donut Diopter.
Professional repeatability using a low tolerance cut center hole. Every diopter hole is exactly the same for results that can easily be replicated on the next take.
Precision glass made from Schott BK7 high crystal count glass similar to your lens.
High transmission coating that won’t change color fidelity and minimize reflections.

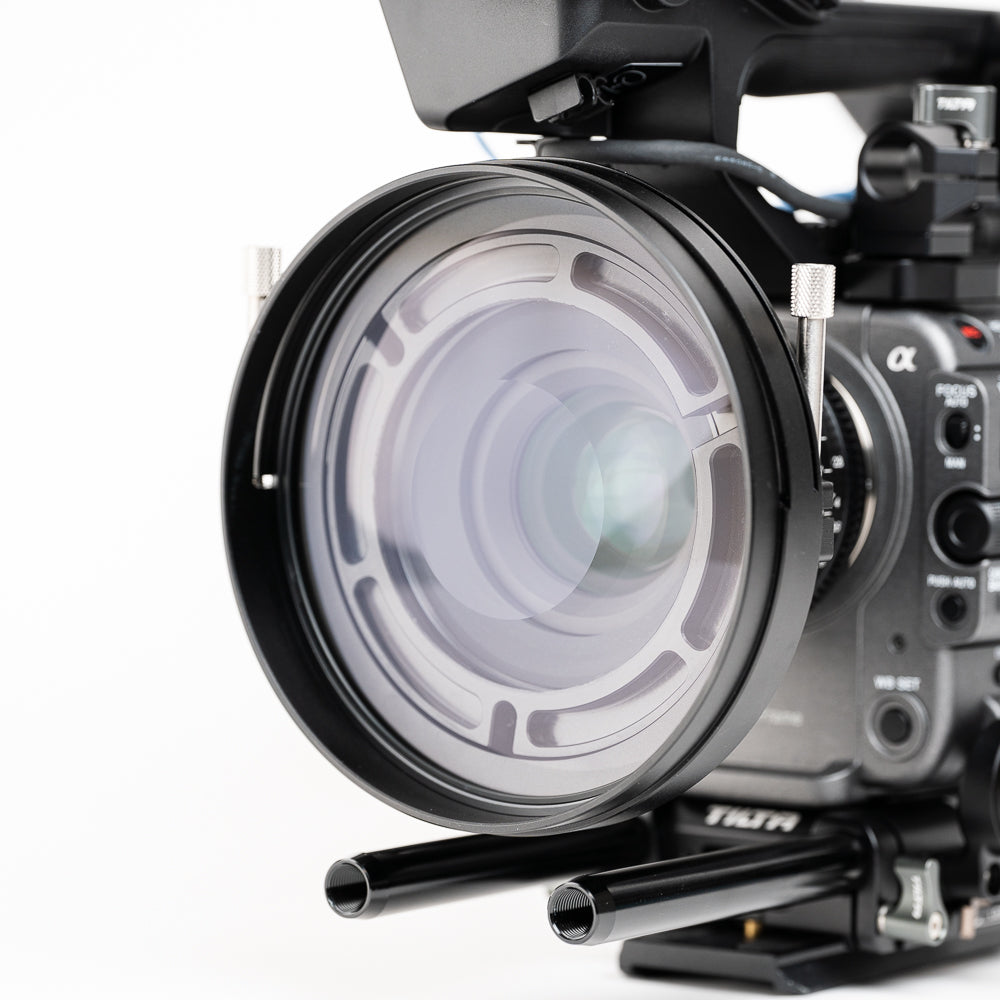

Compatible with all matte box or clamp-on 138mm filter holders.
Frequently Asked Questions
Depending on your application, the best strength can vary. The +1 and +2 are most popular due to the extreme distortion of the edges of frame for selective focus.

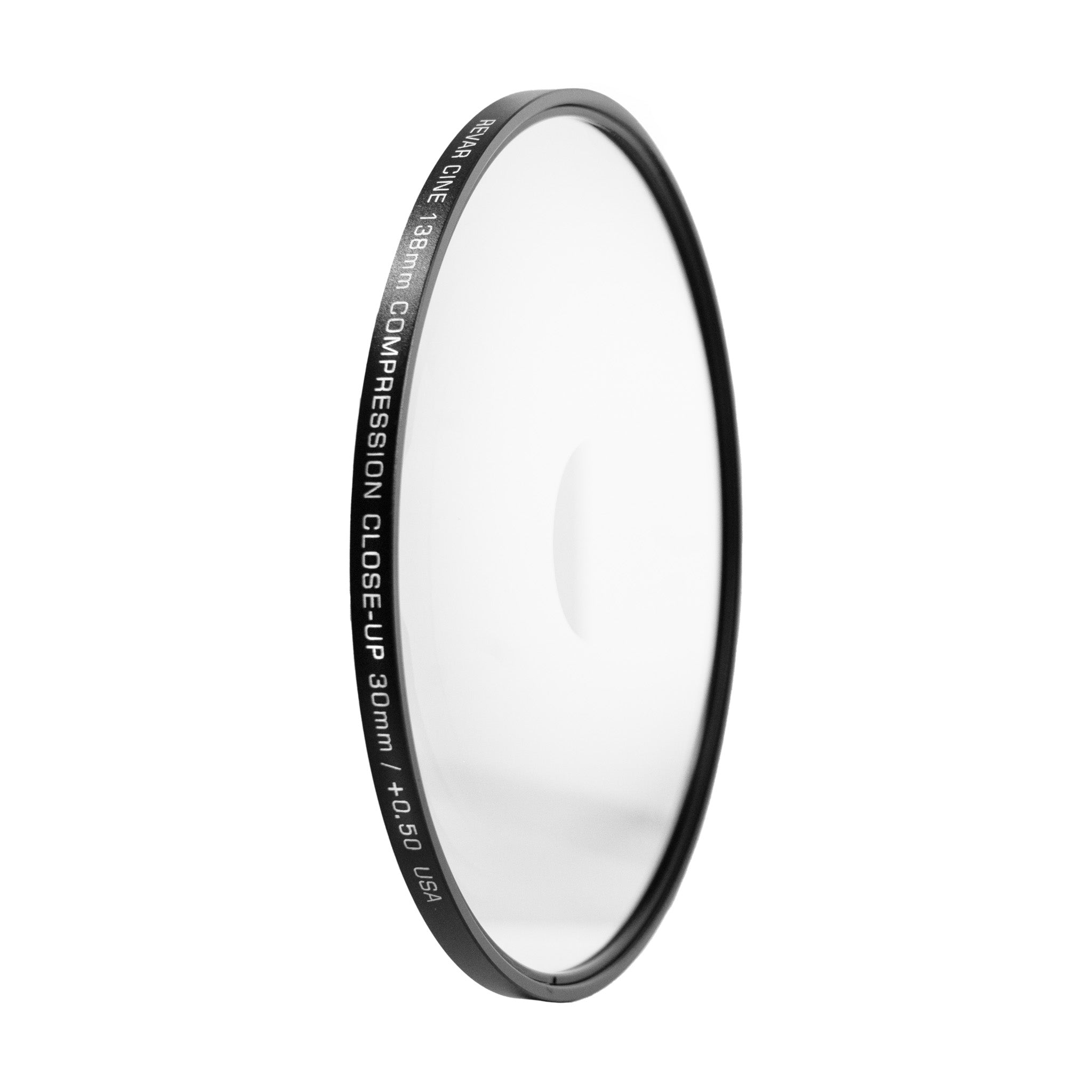

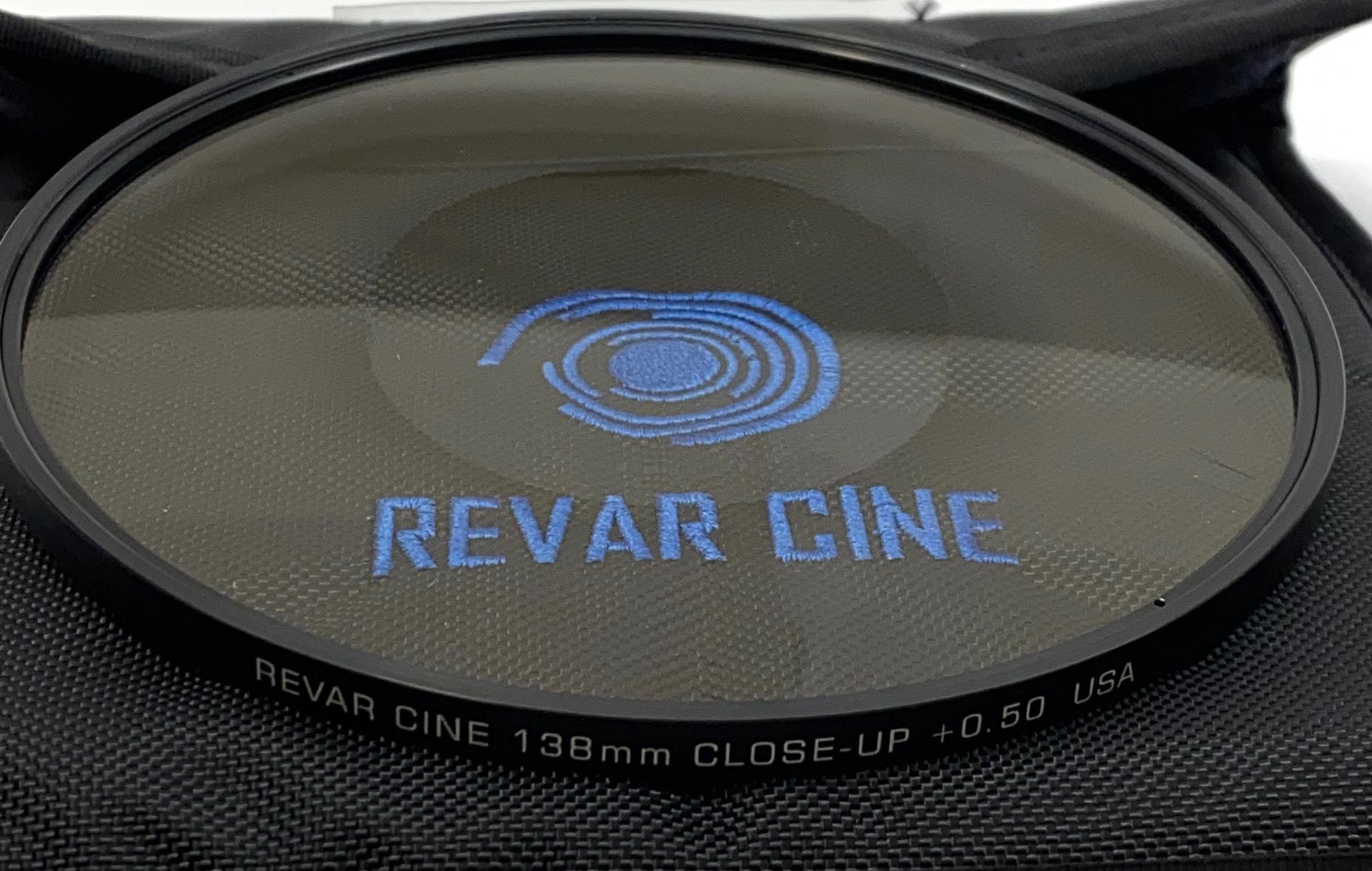

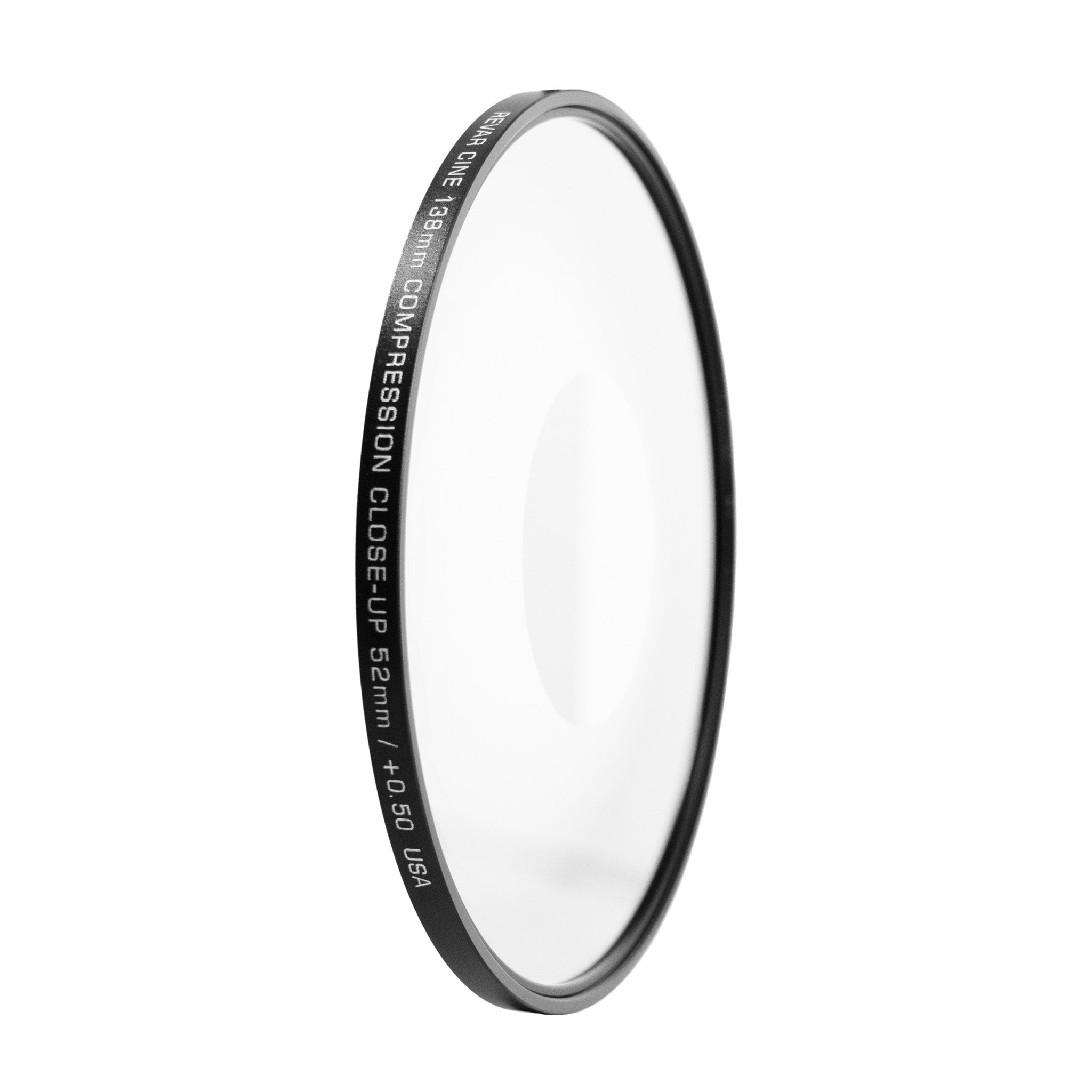

The +0.50 is popular giving you the ability to give a slight selective focus with context in the scene.
The clear window size is in direct relationship to the size of your lens front element and desired frame coverage.

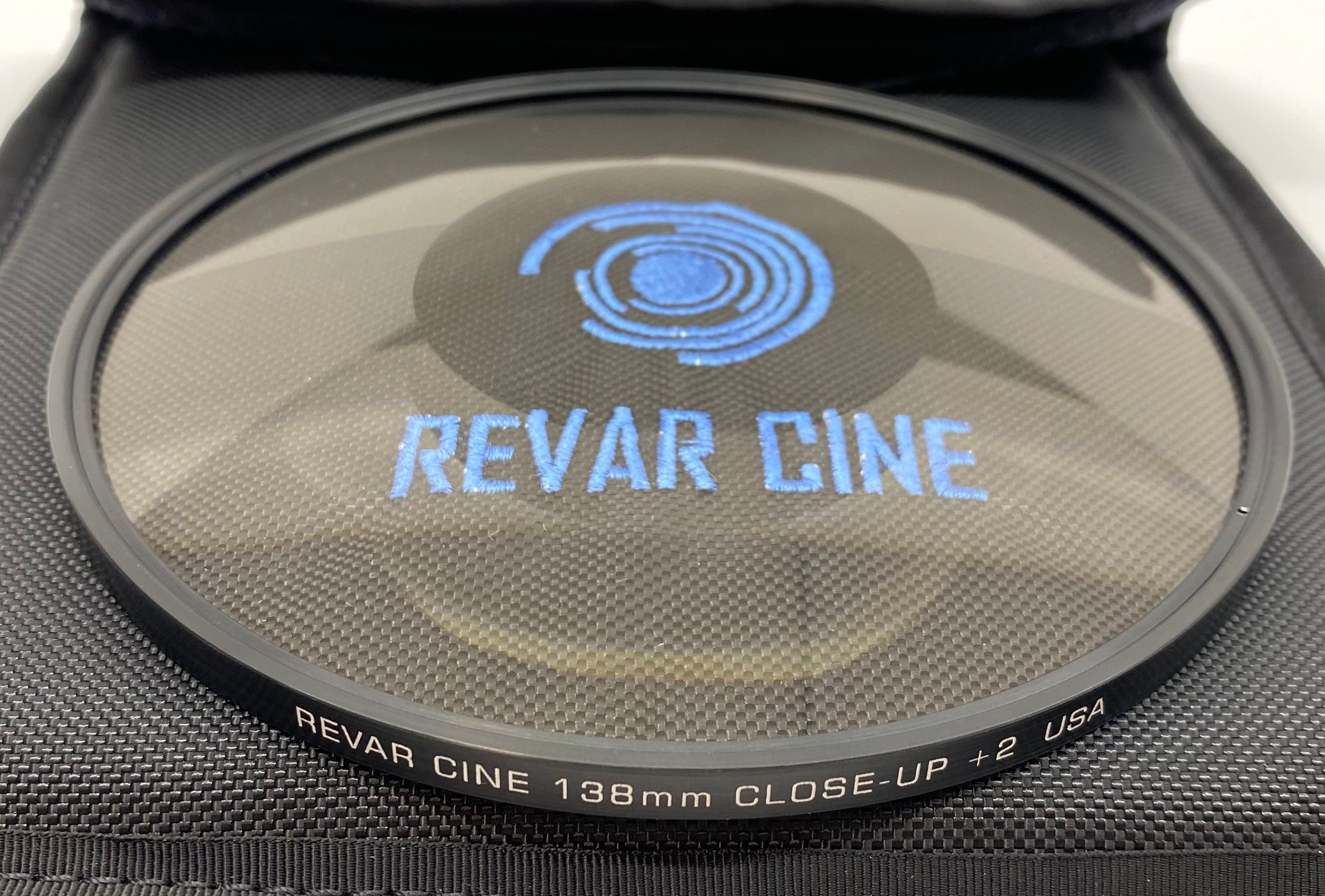

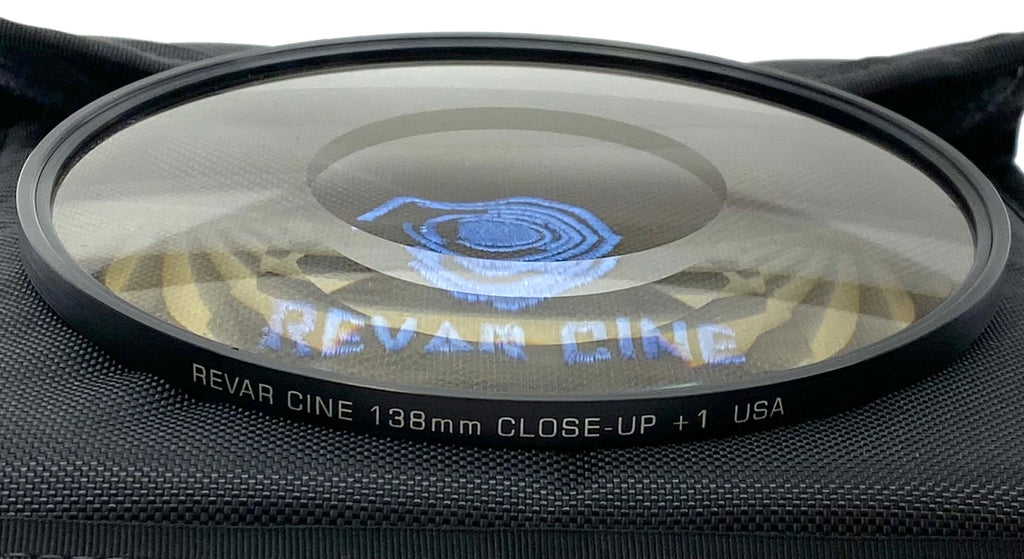

52mm is the most popular for lenses with 95mm to 114mm lens front element sizes.
30mm is the second most popular size for smaller front element lenses such as 80mm or smaller photography lenses.
Donut diopters in +0.25 to +2 work in any standard matte box rear 138mm stage, Revar Cine Double or Triple tray or Bright Tangerine ONE Tray.
The +3 strength requires the Revar Cine Triple Tray, Arri rear 138mm matte box holder, Atlas 114-138mm or ND9eu clamp holder.
We offer only 138mm professional size.
